The New LED Gas Signs Controller Is Coming....

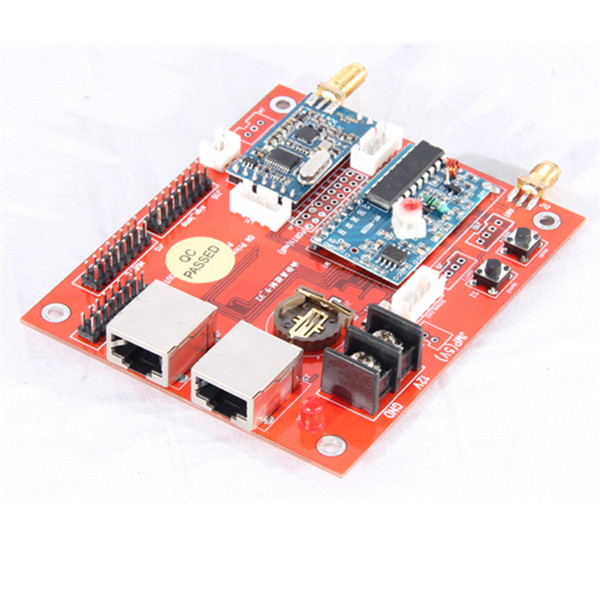

1.LED gas signs controller No.:C7-270.

2.The gas signs card performance become more stabilization passed through hundreds of experiment,more than one hundred detail improvement,updated and upgraded for seven times.
3.According one side,two-side,three-side,it can merge the  signal port from the control card.
4.Each signal port can supply 32pcs digital boards,except unprogrammable boards,like 8/8 ,9/10.
5.With PWM brightness ajustment function Ajustment mode as below:1.Automaitcally adjust brightness with the changes of environment; 2.Adjust brightness by wireless remote control;3.Adjust brightness by computer software.
6.Accept unprogrammable digital boards,Eg 9/10.8/8 and symbols with brightness ajustment functions .
7.Multi-control ways; 1. 50m wireless radio frequency remote control; 2.Connect with computer,control though computer software; 3.External GPRS,control through long-distance computer.
8.Single Digital or the whole line digitals can be hidden by setting.
9.Every Decimal point can be controlled to turn on or off freely by owner.
10.The whole gas signs can be flashing together by setting.
11.9 Grades of Flashing speed:the highest 0.1second/time,the slowest 2 seond/time.the lighting peried is same to un-lighting peried.
12.The present running time can be queried out by our new control system.
13.The total running time can be queried out by our new control system.
14.The format of time display: DDDDHHMMSS。Max format ;9999 day 99 hours 59 mins 59 seconds。
15.5 kinds of humanization testing and aging modes.
16.Real-time monitoring for the program running,any abnormals,the control system can recovery operation by itself.
17.It has real-time inspection for the effectiveness of the display datas.once error comes,symbol showing “----”.
18.The gas signs card working temperature:-40--80℃.
