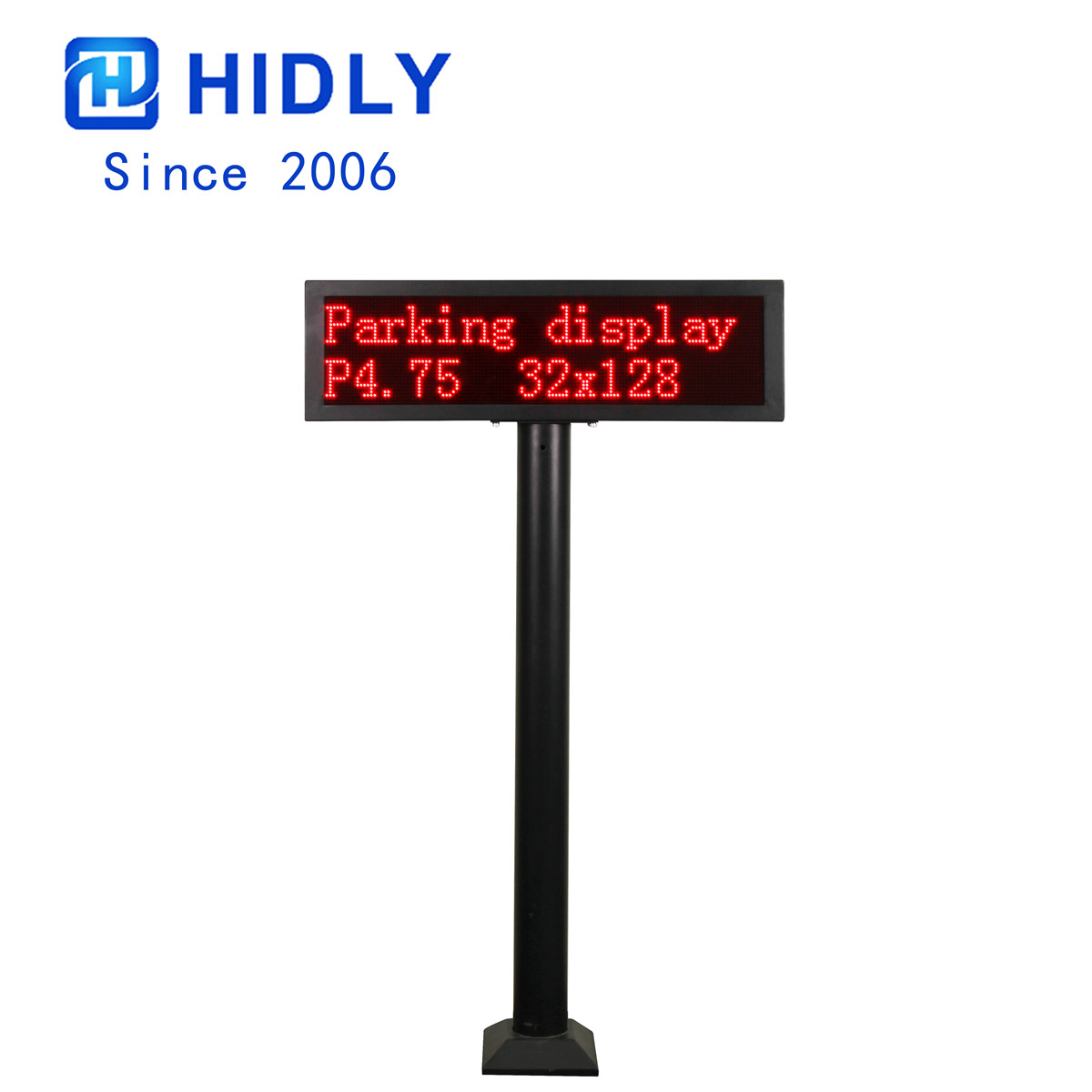

HIDLY P4.75 Red Parking Garage Information Signs

 Advance of the Parking Signs:
1.Free SDK for help you integrate our LED display to your parking system software easy.
2.TCP/IP communication output suit most parking system application, we can also provide RS485 and RS232 communication option.
3.Single color (standard color option is red) design to make an economical solution, the practical value suit most requirement of the intelligent parking lots, the cost performance push every end user easy accept.
4.Real 1.2mm steel housing with spray painting and waterproof structure design for outdoor application. Suit both indoor and outdoor project.
5.Front dark-red acrylic panel for protect eyesight of driver and other people.
6.The adjustable bracket (the height of the pole from 90cm to 130cm adjustable) can help you widely use for all site of parking lots.
HIDLY Parking Signs
How to Choose a Parking Signs:
Before order, please consider below questions:
1.What kind of mode do you need?
  a.Indoor
  b.Outdoor
  c.Semi-outdoor
2. What color do you want?
a.Single color (1 red, 2 green, 3 yellow, 4 blue, 5 white)
b.Double color (red/green, yellow/green, or others?)
c.Full color
3. How many lines do you want to display?
a.One line
b.Two line
c.Three line
d.Four line
e.More
4.Standard communication output:
RS232 standard, but support TCP/IP, USB, RS485,etc.

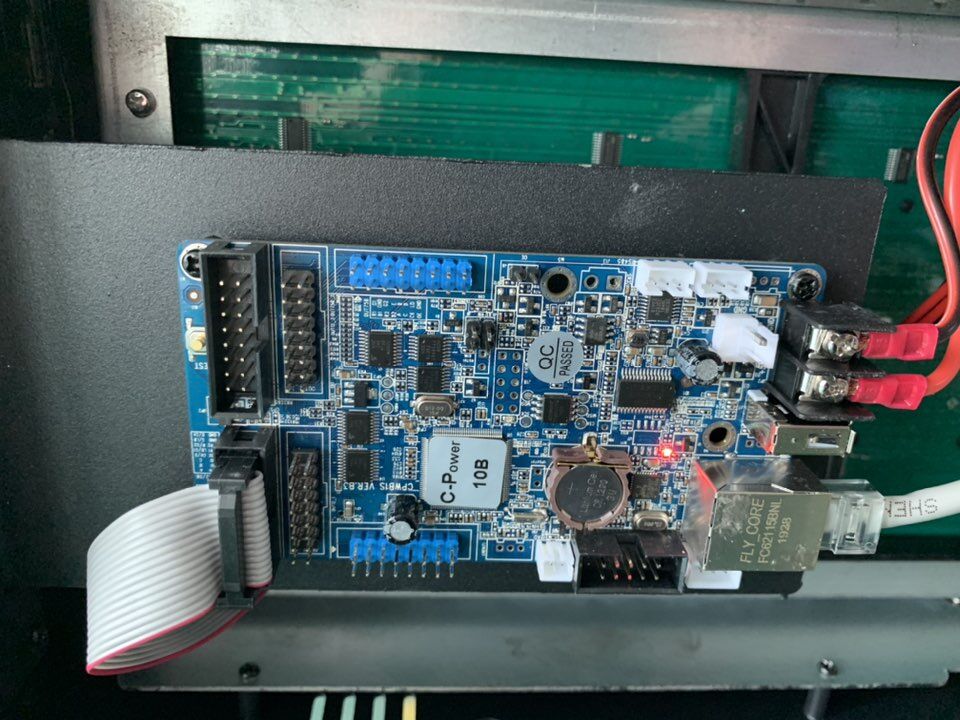

HIDLY PARKING SIGN CARD
Why Choose Our Parking Signs?
1.Free English SDK, and close cooperation for help you solve hardware & software problems
2.Focus on parking lot or traffic LED display more than 10 years
3.Factory price.
4.Best quality.
5.We provide special customized service (OEM/ODM)

Parking Sign Feature:
1. High Contrast: 4000:1
?2.First-class LED chip: Epistar from Taiwan
3.Clear vivid image quality even in direct, full-on sunlight
4. Long-term Brightness capacity throughout product lifetime
5. Easy Installation & Using
6. Convenient Servicing
 HIDLY PARKING SIGNS
Parking Signs Technical Parameter:
Pixel:4.75
Pixel of LED:32x128dot
LED:indoor LED module
Resolution:88642dots/m2
LED Brightness:>600cd/m2
Driver for scaning:1/16
LED view angle:160
LED View Distance:about 60m
Voltage:AC11OV-240V

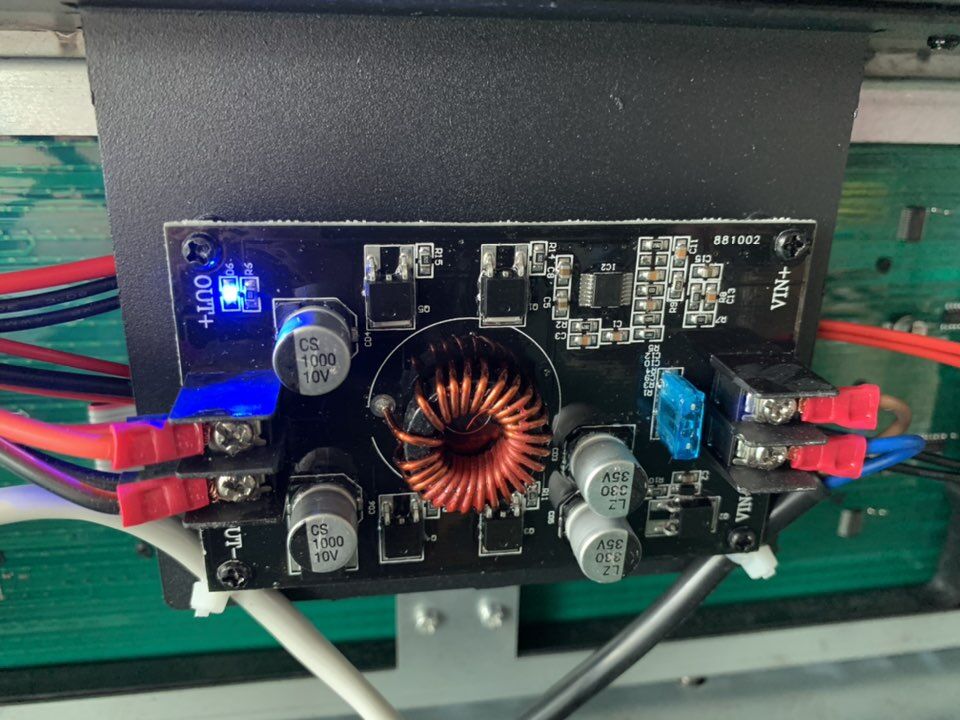

Power:5V20A or 5V40A
Max Power:90W
Temperature:-35℃ ~ +85℃
Humidity:≤90~95%
Housing size:810 x 200 x 100mm
Support pole height:130cm(full high)
Paint work:black color,not easy to fade
Net Weight:10kgs
