LED Gas Station Sign Remote Controller-C7-270
LED Gas Station Sign Remote Controller

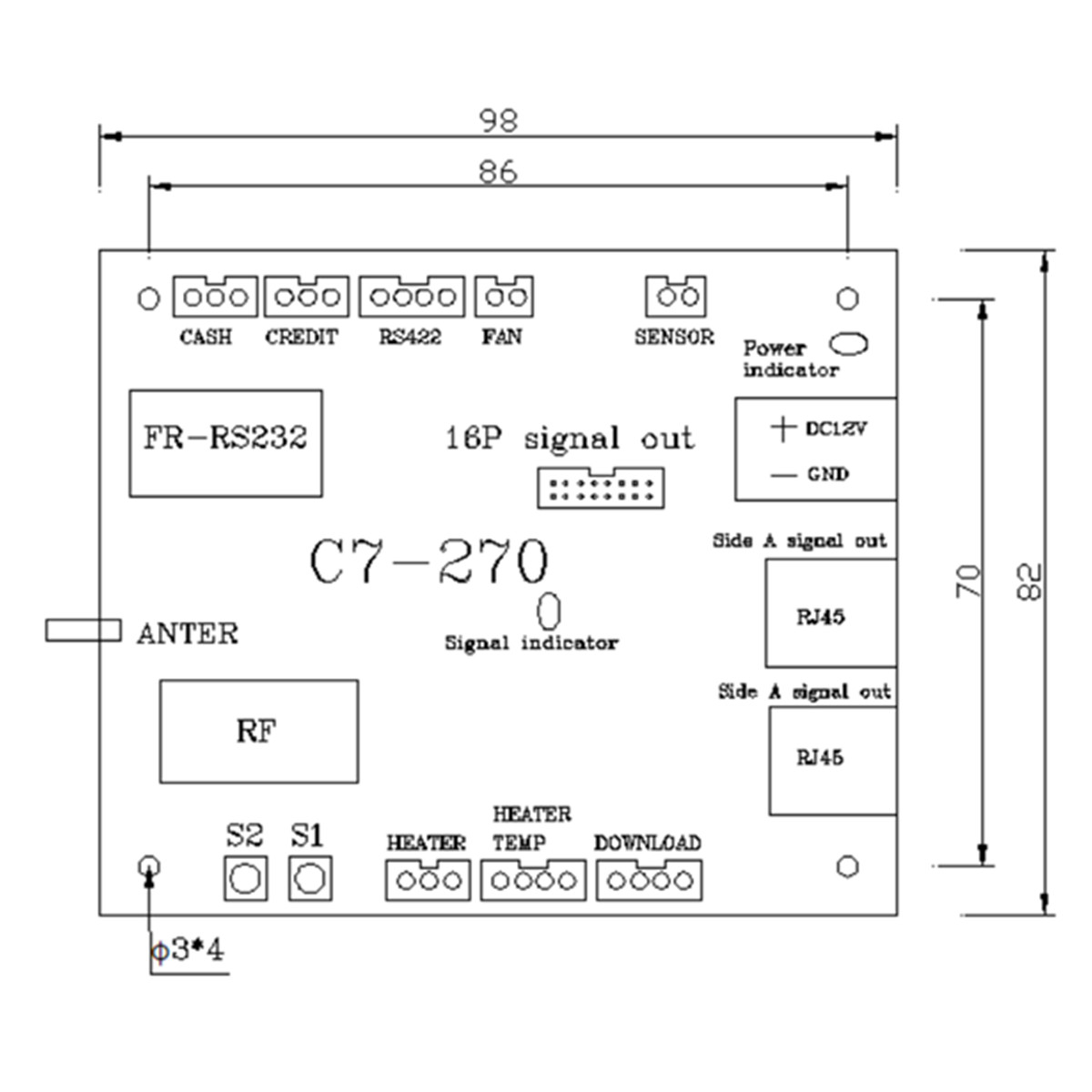

1. N.O: C7-270.
2.Net weight:0.2 kg
3.Controller size: 82*98 mm.
4. Work voltage:DC12-15 V
5.Power consumption: 0.3 W

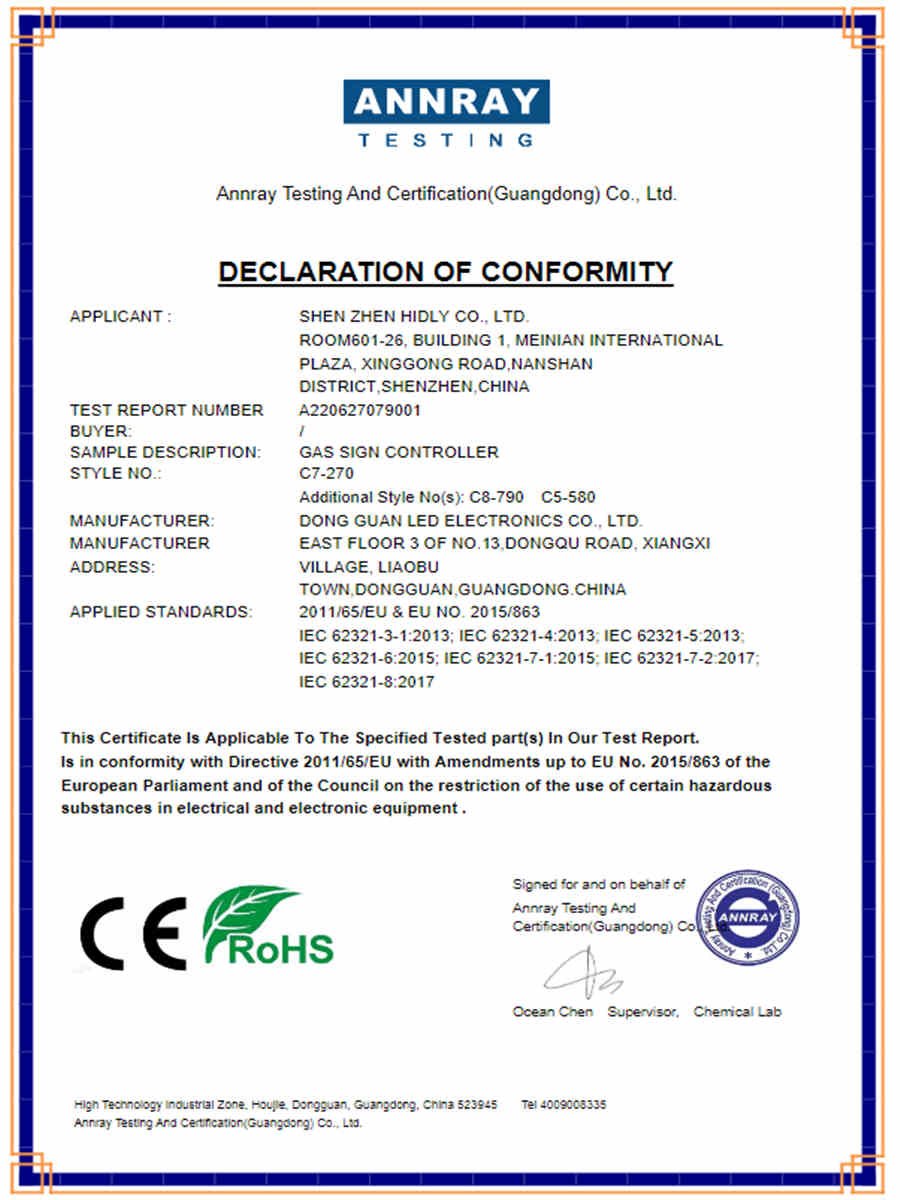

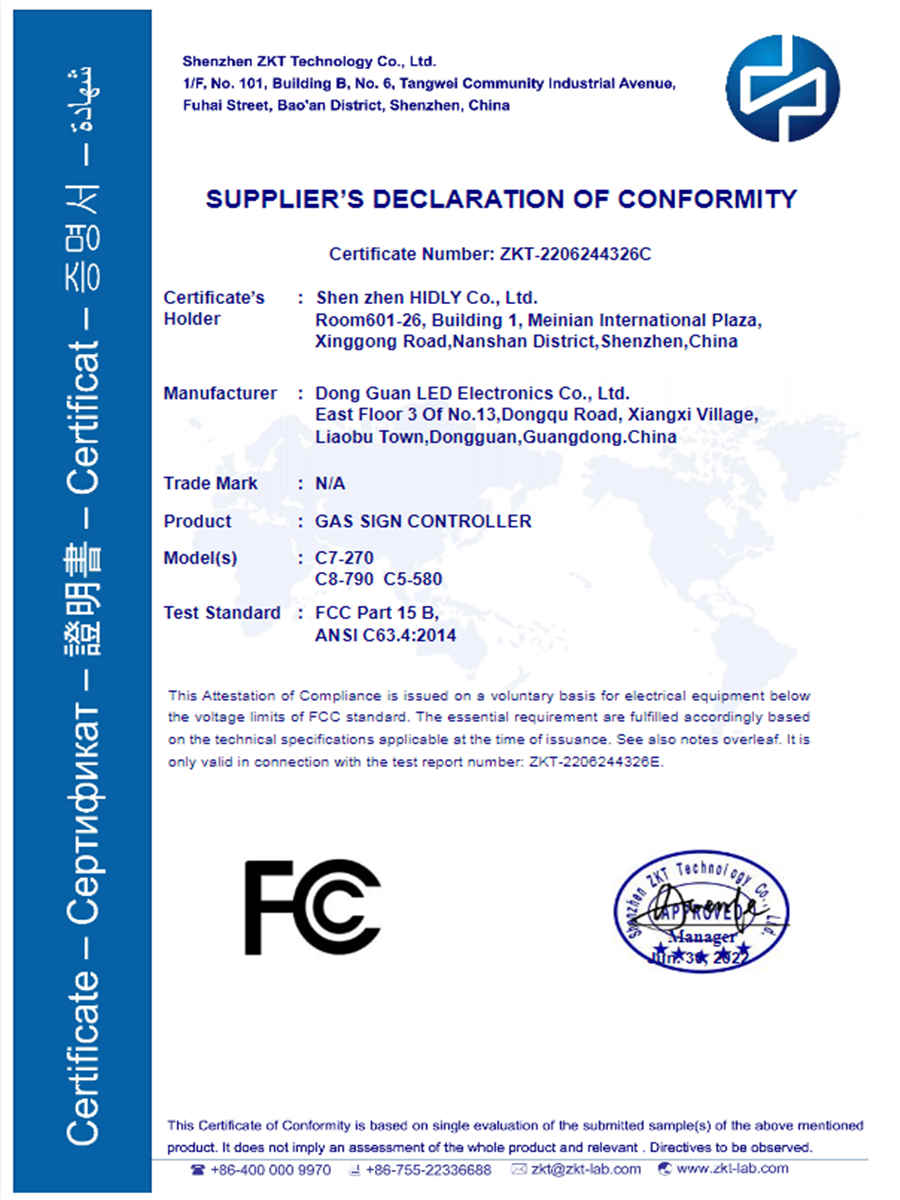

6.Certificate:CE,FCC,RoHS.
7.Power Indicator light: red led
8. CPU working indicator: flash green led
9.Working temperature:-40-80 degree.
10.Through hundreds of tests and more than 100 detail improvements, and after seven generations of upgrading, industrial grade chips make the oil price screen work more stable.
11.Reserve 3 output interfaces (2 Rj45 and 1 socket): stronger output compatibility
12.The digit board can be opened and closed freely by the operator
13.The decimal point of the digit board can be turned on and off freely by the user.

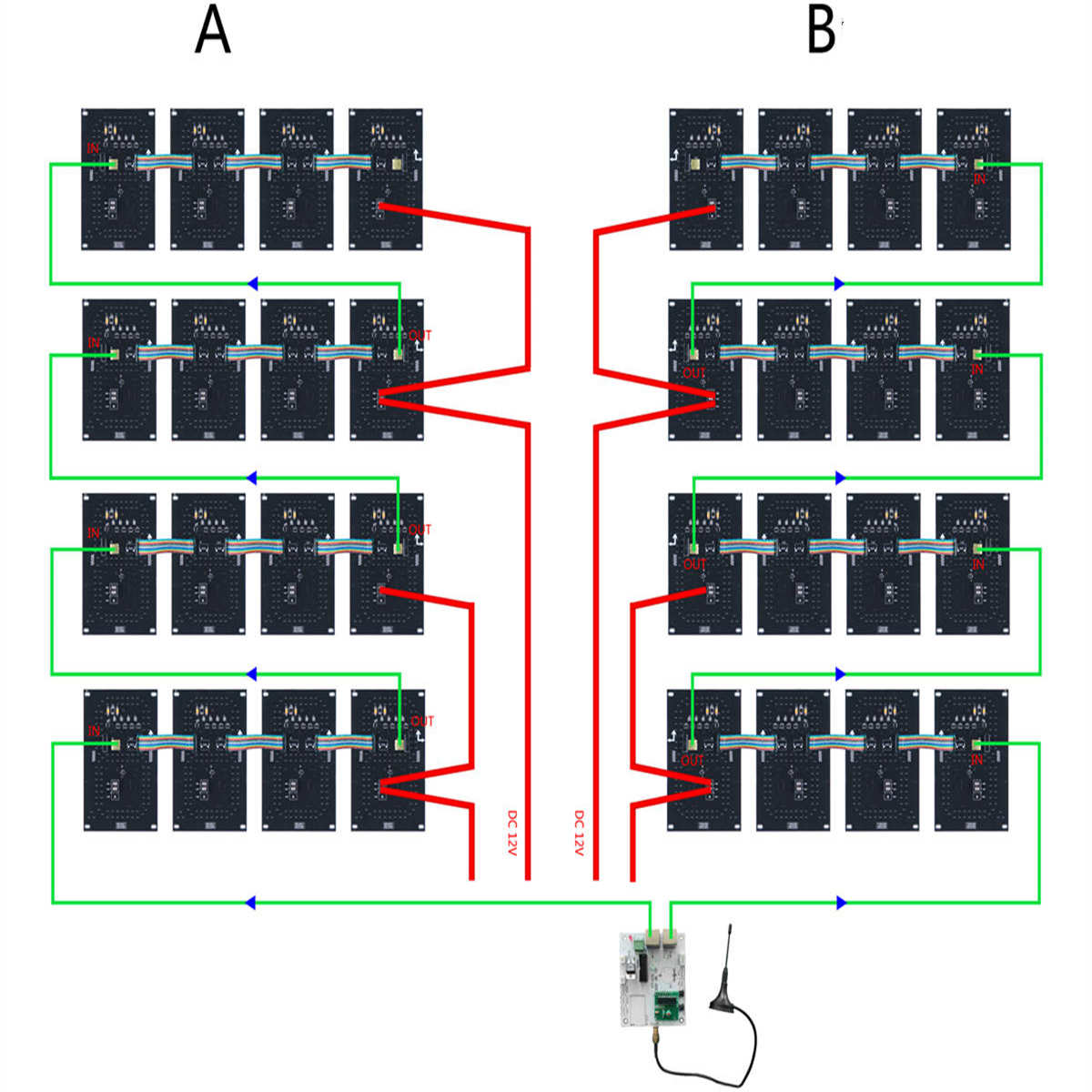

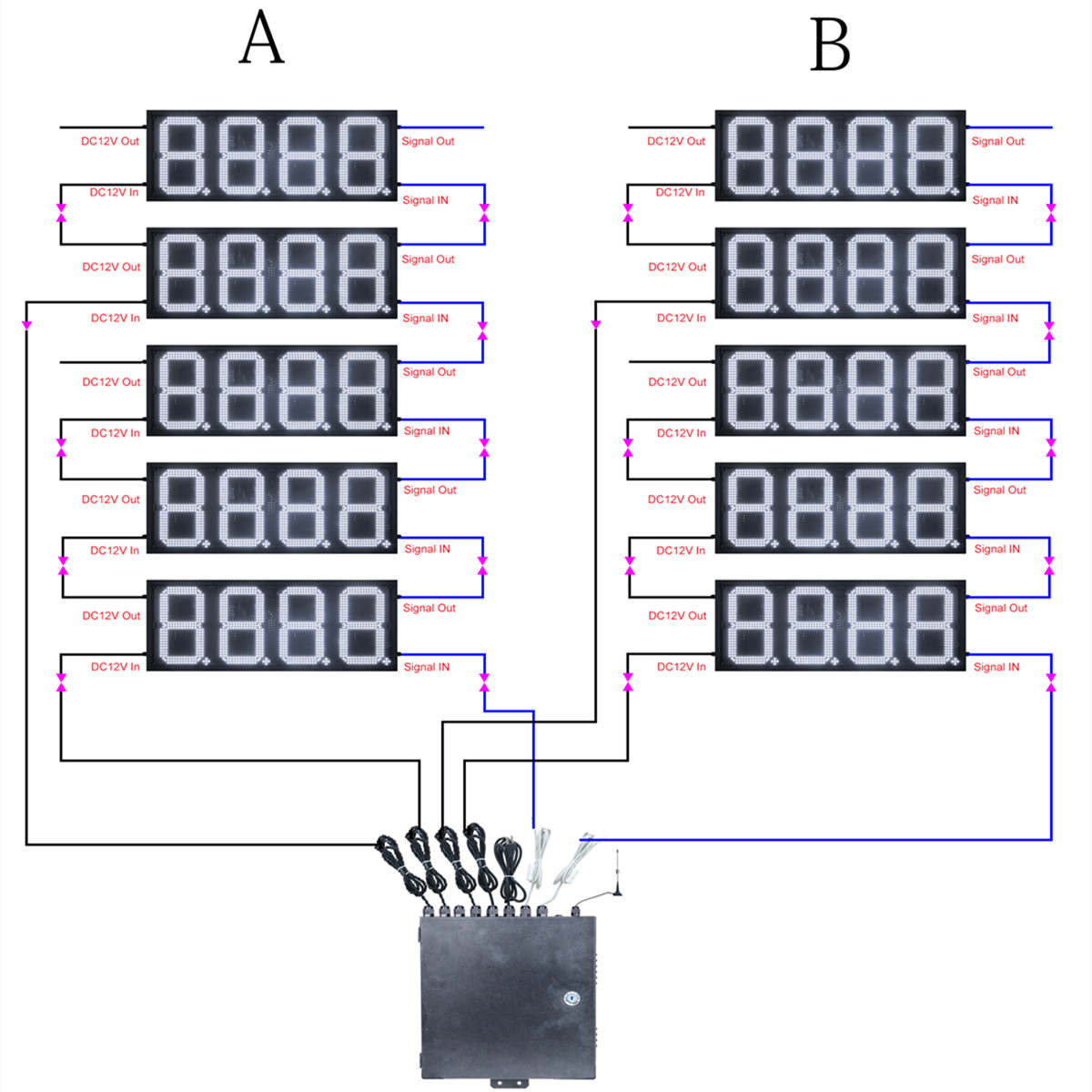

14.Each interface can be connected to 32 digital boards (excluding 8 / 8 and 9 / 10 boards without modifying the value)
15.Can connect digital boards that do not need to be modified, such as 9 / 10, 8 / 8, oil grade, etc. you can adjust the brightness.
16.Multiple control modes: A. 100m radio frequency remote control mode; B. Connected with the computer and controlled by computer software.
17.With PWM brightness adjustment function, the adjustment methods are as follows: a. the environment automatically adjusts the brightness; b. The wireless RF controller adjusts the brightness; c. Computer software to adjust brightness.
18.Standard accessories : 1 board, 1 power line,1 CDS line,1 manual, 2 remotes .
19.Charging accessories:RS485 line.
RF Remote Instruction of LED Gas Sign
Note: 1.Before you operating, please press (button 8)
2. Press the button not too fast.
RF Remote Instruction of Modify Digit:
Step 1: Under the display working, press（button 3) and the first digit will begin to flash.
Step 2: Press（button 1), the flash digit will INCREASE by one.
Press（button 2), the flash digit will DECREASE by one.
Step 3: Press（button 4), the flash digit will shift to the next digit on the RIGHT,
Press（button 3), the flash digit will shift to the next digit on the LEFT.
Step 4: Press (button 5) to switch the digit.
Step 5: Press (button 6) to switch the dot.
Step 6: Press (button 7) to EXIT without saving.
Step 7: Press (button 8) to EXIT with saving.
RF Remote Instruction of Setting Brightness:
Step 1: Under the display working, press (button 5), all digits will begin to flash.
Step 2: Press (button 1), the sign become brighter; Press (button 2), the price sign become darker; "A” means auto brightness by CDS sensor.
Step 3: Press (button 7) to EXIT without saving.
Step 4: Press (button 8) to EXIT with saving.

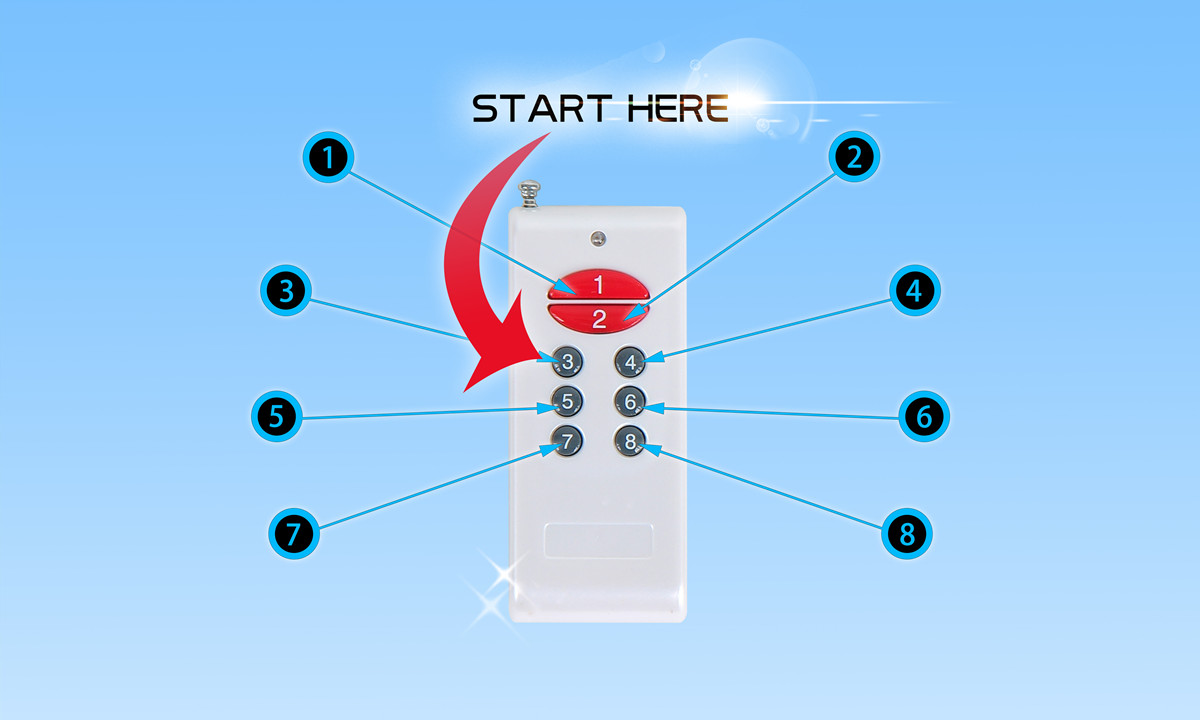

Function of Button:
1 Digit-Up - (button 1): INCREASE by one.
2 Digit-Down-(button 2) : DECREASE by one.
3 Edit-(button 3):
Press one time to enter EDIT mode, and the first digit will begin to flash.
In EDIT mode：Press (button 3), the flash digit will shift to the next digit on the LEFT,
4 Shift-Right-(button 4):
The flash digit will shift to the next digit on the RIGHT, for each individual price sign.
5 Setting Brightness- (button 5) :
Press (button 5) to enter SET BRIGHTNESS mode and all digits will begin to flash.
In EDIT mode：Press (button 5), switch the digit
6 Switch-dot (button 6):
In EDIT model, press (button 6) to switch the dot.
7 Exit-(button 7):
Press (button 7) to EXIT without saving.
8 Confirm - (button 8):
Press (button 8) to EXIT with saving.
Thank you for using our LED gas sign!
Warm tips: the following functions need to be operated by gas price sign basic operators
1. Set the number of digits:
Step 1: in the normal working mode, press keys 2 and 8 at the same time, and the last number will flash.
Step 2: press 1 and 2 keys to modify the required value, and shift through 4 keys.
Step 3: press key 8 to save and take effect
2. Key test most
In the normal reality mode, press the S1 and S2 keys on the control card at the same time to enter the key test mode. Press the S1 key alone to switch the following four test modes:
a) Maintenance mode: press S2 key once to switch between all on and all off
b) Static mode: manually switch the display by pressing key S2: "0" "1" "2" "3" "4" "5" "6" "7" "8" "9" "0." "1." "2." "3." "4." "5." "6." "7." "8." "9." "A"
c) Automatic switching display: "0" "1" "2" "3" "4" "5" "6" "7" "8" "9" "0." "1." "2." "3." "4." "5." "6." "7." "8." "9." "A" .The switching speed can be adjusted by pressing S2 key.
d) Digital flow display: "0" "1" "2" "3" "4" "5" "6" "7" "8" "9" "0." "1." "2." "3." "4." "5." "6." "7." "8." "9." "A" ,The flow speed can be adjusted by pressing S2 key.
Press the S1 and S2 keys on the control card at the same time to exit the factory test mode.
Gas Station Sign Remote Controller Packaging Details:
Remote controller size:82*98 mm
Single net weight:105 kg/pcs
Package size:16*15*5cm
Qty:1pcs/CTN
G.W:0.45 kg
Frequently Asked Questions
1.What are the lead times for led gas station sign remote controller?
Upon payment, we will eventually process your order. However a lead time of 3 days is required.
2.What do the led gas station signs remote controller come with?
Our led gas station signs remoter controller come with everything you need to operate such as main board,two remote,CDS line.
3.What is the warranty policy should the led gas station sign arrive damaged?
We are pleased to offer our convenient warranty policy.
4.What formats do these led gas station sign remote controller come in?
The signs formats are available in 8.88, 8.888, 8.888 9/10 and 8.88 8/8,Allow our customer service support to help you find the right regional format that you need.
5.How long do the led gas station sign last?
Our digit can last an average of 6 years.
6.Can you keep them on all day & night? And if so, will it affect the longevity?
Yes, you can keep them on 24/7 without affecting the longevity.
7.How to install the gas price signs remote controller?
Please click here to see installation diagram.
8.How do you pack the signs remoter controller?
We pack with utmost care to prevent breakage during shipping. Please refer to how we pack for more details.
9.Can you provide the solution of accessory?
Yes,we can.We are professional in led gas station sign
HIDLY is a profession manufacturer to produce outdoor led gas station signs remote controller, our main markets are in America, Europe, Australia, Middle East and Southeast Asia. We manage our factory on comparatively higher modern production level with a consummate quality guarantee system, ensuring our products with high quality to follow the new trends of domestic and foreign markets;If you want custom.
