Gas Station Sign-GAS152182D

Why HIDLY Led Gas Station Sign?
*Multiple digit heights available 4"-48”.
*Light weight: allows for an easy installation.
*Available LED colors: red, green, blue, yellow, white.
gas station sign
*Reduce liability concerns from manual price changing.
*Industrial grade connectors: help prevent faulty contacts.
*led gas station signs help your business grow more quickly.
*All displays are tested and rated to work at least 100,000 hours.
gas station sign
*No extra cost or labor work for updating the LED gas price sign.
*Led gas station sign get your customers attention from as far as 600 meters.
*High efficiency: the lowest energy consumption of any display product to date.
*Double your sales with bright, high quality and long-lasting led gas station signs.
*Made for easy mounting: brackets created for easy to mount on existing structure.
*120 Degree viewing angle allows for an increased viewing time over the competition.
*Simple to setup: ready to use out of the box (plug and play easy to install and operate).
*Automatic light Sensors: detects and adjusts the correct intensity for daytime or nighttime use.
*User friendly remote:update the led gas price signs sitting in your store with the remote controller.
*Environmentally friendly: no mercury, making them a cleaner alternative to fluorescent and CFL Displays.
*LED designed specifically for traffic: technology to prevent glare or reflection for an easier to ready display.
*Intelligent temperature control maintains safe operation temperatures to make display last as long as possible.
*Be noticed FIRST,from a very far distance,this is a onetime investment that will lead to a steady growth in your business.
*Brightness can be set from remote control or can be set to "Auto" for automatic brightness changes between night and day.
gas station sign
LED Gas Station Sign Specifications:

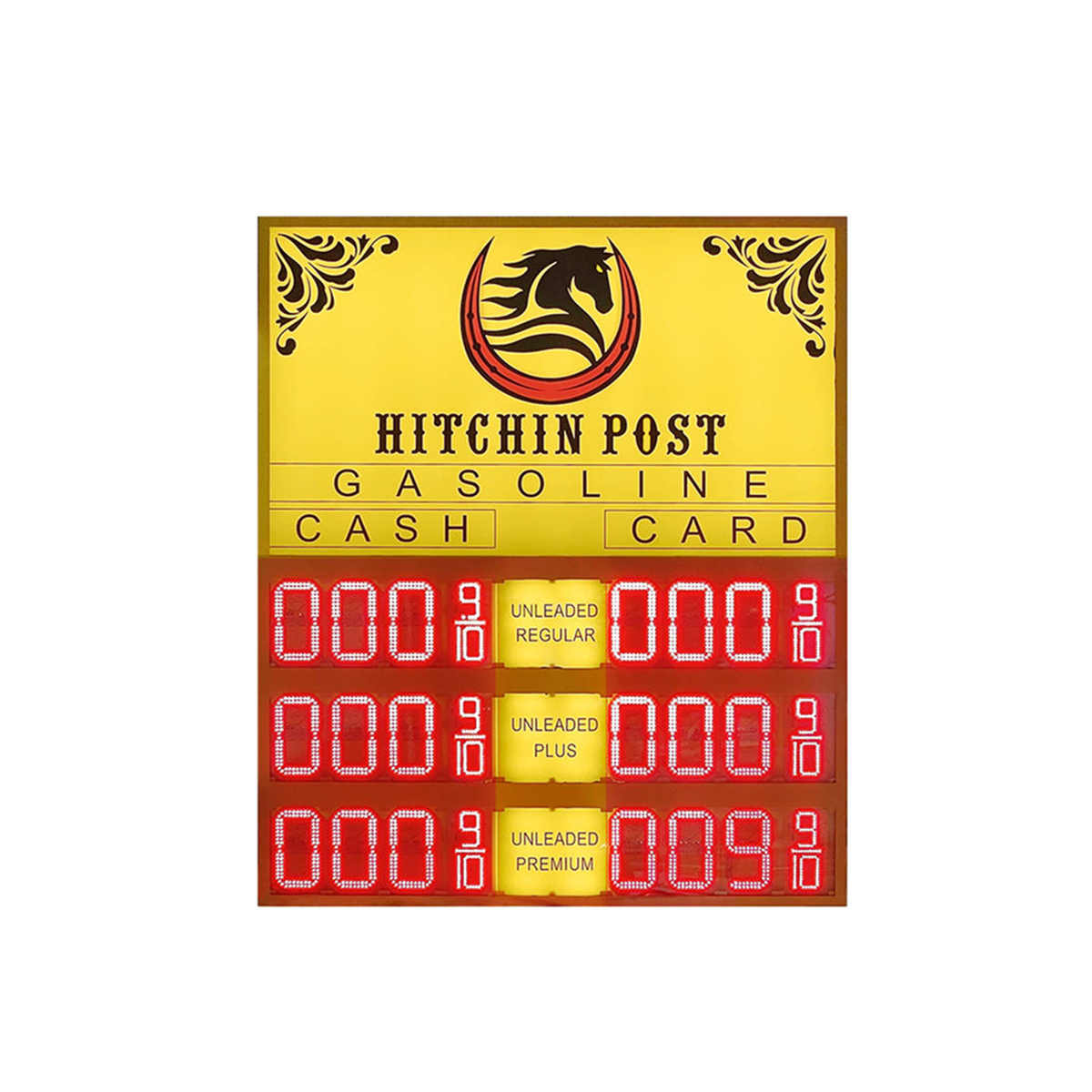

Model:GAS152182D
Name:double led gas station sign
Gas sign LED type:DIP
Visibility>1000m
PCB material :FR4
Updated vervion:8
gas station sign
gas station sign
Digit board size:8 inch
Power input:AC110 or AC220
Brightness:10000mcd
PCB thickness:1.6mm
Energy consumption:500w
Viewing angle:120 degree
Driver:constant current drive
Humidity range:10-80%RH
Temperature range:-10F-140F
Light sensor with automatic dimming
gas station sign
Digit number styles:8.888   8.889   8.88 9/10
Reduce liability concerns from manual price changing
Easy installation, with quick power and signal connections
Available in colors like red, greem, yellow,white,blue,amber.
Wireless remote control with up to 300 feet direct line of sight
Packaging:wooden case+EPE foam or carton+EPE foam
2-year limited product warranty
gas station sign
gas station sign
LED Gas Station Sign Packaging Details:

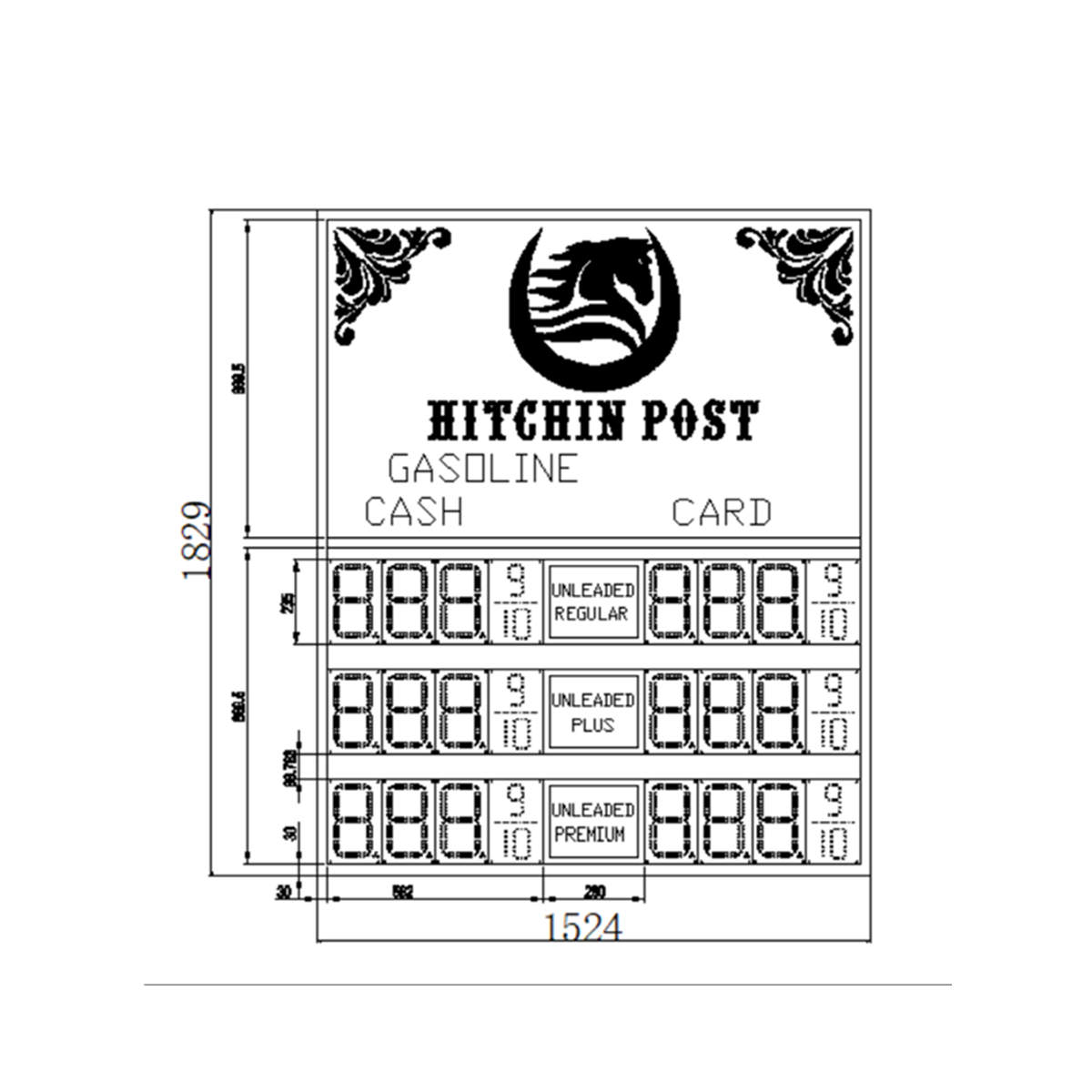

LED box size:1524*1829*180mm
Single net weight:105kg/pcs
Outer package:169*189*220cm
Qty:1pcs/CTN
G.W:147kg
gas station sign
gas station sign
gas station sign
gas station sign
gas station sign
gas station sign

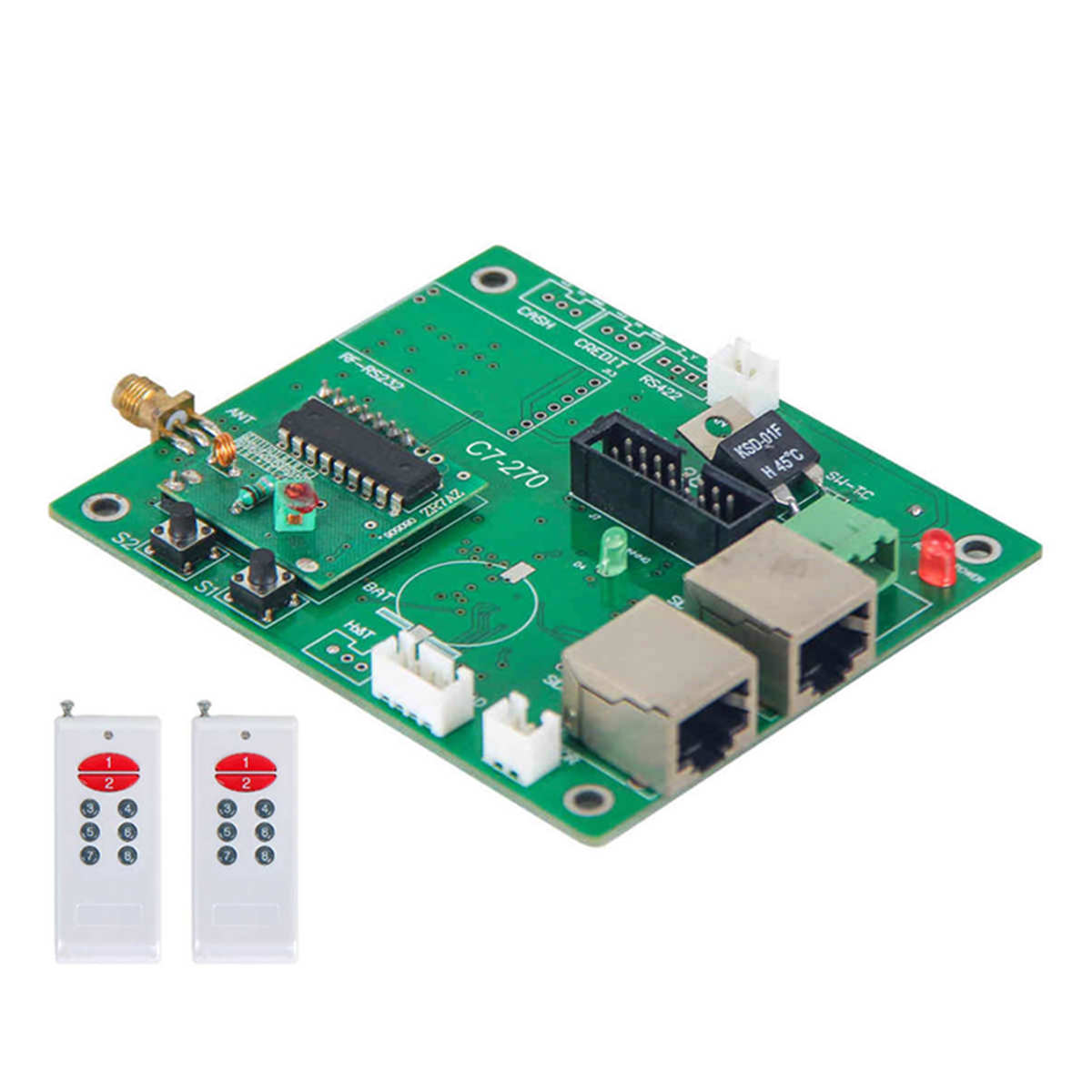

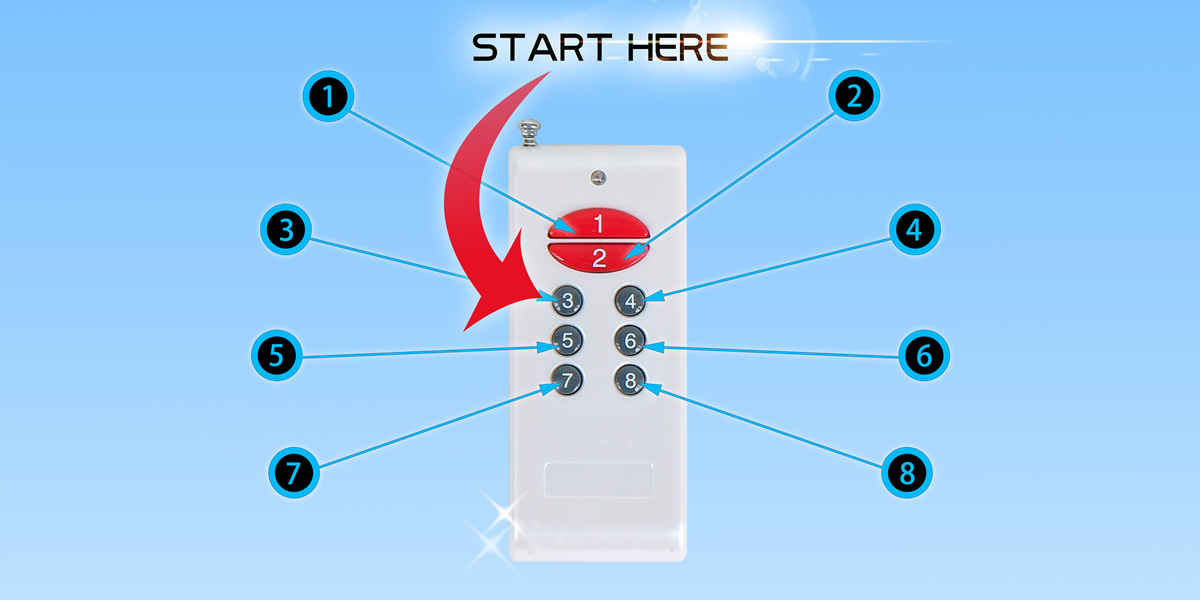

    RF Remote Instruction of LED Gas Sign
Note: 1.Before you operating, please press (button 8)
          2.Press the button not too fast.
     RF Remote Instruction of Modify Digit:
Step 1: Under the display working, press(button 3) and the first digit will begin to flash.
Step 2: Press(button 1), the flash digit will INCREASE by one.
            Press(button 2), the flash digit will DECREASE by one.
Step 3: Press (button 4) ,the flash digit will shift to the next digit on the RIGHT
            Press(button 3), the flash digit will shift to the next digit on the LEFT.
Step4: Press (button6 ) to switch the dot.
Step5: Press (button5 ) to switch the digit.
Step6: Press (button7 ) to EXIT without saving.
Step7: Press (button 8 ) to EXIT with saving.

RF Remote Instruction of Setting Brightness:
  Step 1: Under the display working,press (button 5), all digits will begin to flash.
  Step 2:Press (button 1),the sign become more brighter; Press (button 2),the price sign become darker; "A"means auto brightness by CDS sensor.
  Step 3: Press (button7 ) to EXIT without saving.
  Step 4: Press (button 8) to EXIT with saving.

Function of button:
  1 Digit-Up -(button 1): The Flashing Digit on the Price Sign will INCREASE by one.
  2 Digit-Down-(button 2) : The Flashing Digit on the Price Sign will DECREASE by one.
  3 Edit-(button 3) :
    Press 1 time to enter EDIT mode, and the first digit will begin to flash.
    In EDIT mode:press (button 3), the flash digit will shift to the next digit on the LEFT,
  4 Shift-Right-(button 4) :
    The flash digit will shift to the next digit on the RIGHT,for each individual price sign.
  5 Setting Brightness- (button 5) :
    Press (button 5 ) to enter SET BRIGHTNESS mode, and all digit will begin to flash.
  6 Switch-dot(button 6) :
    In EDIT model,press (button 6 )to switch the dot.
  7 EXIT(button 7) :
     Press  (button 7)  to EXIT without saving
  8 Confirm - (button 8) :
    Press (button 8) to EXIT with saving.
gas station sign
gas station sign
gas station sign
gas station sign
gas station sign
gas station sign
gas station sign
gas station sign
Frequently Asked Questions
1.What are the lead times for led gas station sign?
Upon payment, we will eventually process your order. However a lead time of 30 days is required. Because haste makes waste, we give our team enough time to bring about personalized price screen for you.
2.What do the led gas station signs come with?
Our led gas station signs come with everything you need to operate such as box, a control box, cables, and remote.
3.What is the warranty policy should the led gas station sign arrive damaged?
We are pleased to offer our convenient warranty policy.
4.What color do these led gas station sign come in?
The digits are usually available in colors of red,blue, yellow,white and green.
5.What sizes do the seled gas station sign come in?
The size of the digits is determined by the letter's height. We offer screens from 8" up to 72". Please refer to sizes for information. Also, do not forget that you can customize your order with the help of our Custom LED Price Screen Form.
6.What formats do these led gas station sign come in?
The signs formats are available in 8.88, 8.888, 8.888 9/10 and 8.88 8/8,Allow our customer service support to help you find the right regional format that you need.
7.How long do the led gas station sign last?
Our digit can last an average of 6 years.
8.Can you keep them on all day & night? And if so, will it affect the longevity?
Yes, you can keep them on 24/7 without affecting the longevity.
9.How to install the gas price signs?
Please click here to see installation diagram.
10.Can I get a different combination of  screens than what appears on the website?
Yes, please fill out our custom request form for a custom quote if you need different sizes or combinations of colors.
11.How do you pack the signs?
We pack with utmost care to prevent breakage during shipping. Please refer to how we pack for more details.
12.Can you provide the solution of accessory?
Yes,we can.We are professional in led gas station sign
13.Can you provide finished product solution for exhibition or bid?
Yes,we can,please refer the website,but the the lead time is longer.
14.Can you provide the digital board as the size of customing?
Yes,we can. If you want custom please contact us.
Have a question or comment? We want to hear from you! Facebook:HIDLYCARE
